Wired Smart Relay



The Guardian™ Grow Manager constantly senses, doses, tracks, and analyzes your entire grow operation to your specifications. This includes automatic lighting control. The Wired Smart Relay allows you to link any grow light to Guardian™ for automated timing and dimming.

Several Wired Smart Relays can be connected in a daisy chain to support the AEtrium-4 Bloom System. In this configuration the attached grow lights switch on one after another with a sequential delay to limit the input surge current on the circuit breaker.



Features:

  • Handles up to 2,500W power
  • AES Link compatible (slave)
  • Industry standard 0-10V dimming interface to grow light
  • Turns on/off and dims the connected grow light on Guardian command
  • 100-240 V AC universal input



Included in box :

  • Wired Smart Relay
  • Power cord
  • Mounting accessories
  • AES link communication cable (6' long, PN: 341-91114-01)



Availability:

  • In stock



Variants:

Model nr. Part nr. Voltage Socket type Plug type Plug Region

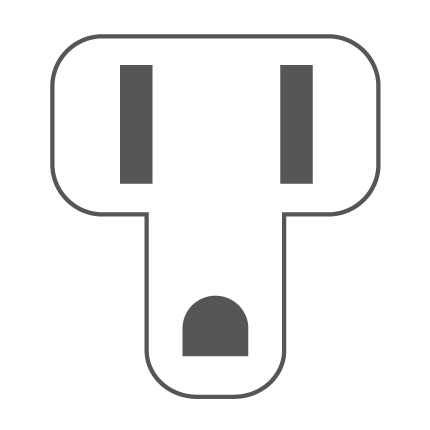

WSR-5 201-00002-01 120V NEMA 5-15/20 NEMA 5-15P Plugs NEMA 5-15P.png US & CA

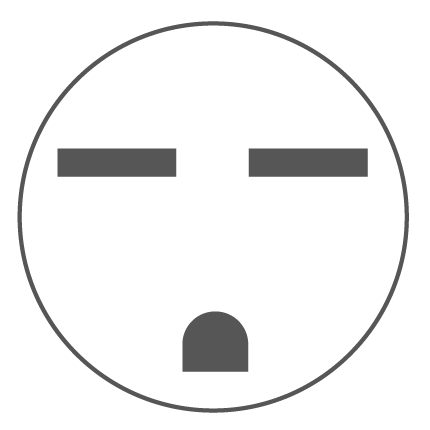

WSR-6 201-00003-01 208V NEMA 6-15/20 NEMA 6-15P Plugs NEMA 6-15P.png US & CA
WSR-I 201-00005-01 230V Type I Type I Plugs Type I.png CN

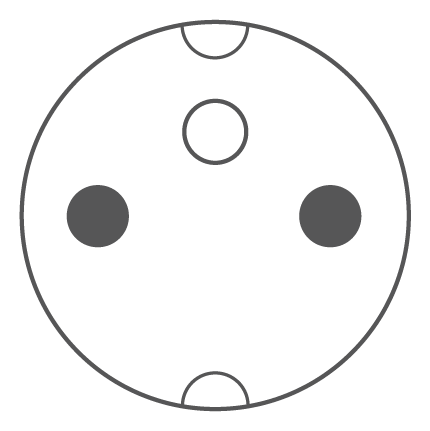

WSR-F 201-00004-01 230V Type F CEE 7/7 Plugs CEE 7-7.png EU
WSR-J 201-00001-01 230V Type J Type J Plugs Type J.png CH



Additional accessories:

Part nr. Description
341-92102-01 26' long AES Link Communication Cable from AEtrium-4 Matriarch to Wired Smart Relay
341-92065-01 32' long AES Link Communication Cable from AEtrium-4 Matriarch to Wired Smart Relay



Documents:

Wired Smart Relay Datasheet
