AEtrium-2.1 SmartFarm for Aeroponic Cloning & Vegging



AEtrium-2.1 SmartFarm Aeroponic Cloning & Veg


AEtrium-2.1 SmartFarm for Aeroponic Cloning & Vegging

A Scaled-Up, Stacked-Up, Fully Automated, Aeroponic Clone System for Nurseries

The AEtrium-2.1 SmartFarm delivers fast, safe, reliable aeroponic clones in VOLUME.  This stacked 4-layer fully automated grow system was created with modularity and high volume commercial cultivators in mind.  Each 72-tray AEtrium SmartFarm automates the growth of cuttings from mother plants into 4536 beautiful healthy aeroponic clones every 10 days for tall green plants like hemp.  This fully automated system delivers 100+ clones per square foot of floor space per month.  Bring your clone system in-house and you're in control.

The 4-layer aeroponic SmartFarm for commercial nurseries comes in 24, 48, or 72-tray configurations.

How Much Money Do You Spend Each Grow Cycle Buying Aeroponic Clones?

This 4-layer high density aeroponic cloning system makes YOU the lowest cost clone supplier.  The aeroponic SmartFarm is highly flexible and easily configured with trays for any allocation of cloning or vegging space.  Automated sensing and dynamic dosing manages your entire nutrient recipe from pH to lighting to nutrients throughout the grow process so your plants start healthier, grow faster, and provide greater yields.  You can adjust your grow recipes on-demand to reproduce exactly the same grow plan with tireless precision every time.

Ever Experience A Time When Your Supplier Was Out Of Your Strain?

The aeroponic SmartFarm is highly automated for perfectly predictable high quality aeroponic clone results.  Each layer of the SmartFarm includes its own power and energy efficient, cool-running LED light panels, full coverage irrigation, sensor monitoring, and wireless notifications.  The lighting panels provide full spectrum white PPFD intensity levels greater than 300 umols/m2/s and are 0-100% dimmable.  Every dynamic dosing unit can be interrogated for sensor readings, activity, grow plan, etc.  Free yourself from clone supply shocks or delays. No downtime = More grow time.

Did Your Clone Supplier's Careless Behavior Ever Threaten Your Investments?

You keep a clean environment as your first defense.  Can you guarantee your clone supplier takes the same precautions?  Have you ever brought in clones only to find them infested with spider mites or root aphids?  You tightly control access to your grow rooms.  Are your clone suppliers as strict?  You avoid pesticides so you can glide though testing before you go to market.  Cannabis is an accumulator.  Does your supplier guarantee zero pesticide delivery?  Take control and run your business with safe guaranteed aeroponic clone supply.  Bad clones are not worth risking your entire investment.

Automation Puts You In Control & Keeps Your Flower Bloom Rooms In Production

The aeroponic SmartFarm is a complete cloning & vegging system.  Start the grow plan and the machine takes care of itself.  The Guardian™ Grow Manager software provides you remote access and control of lighting, nutrient grow recipes, irrigation schedules, environmental monitoring & control, operator task management, and many more features from any keyboard or smart phone.  When supplies are needed, the nutrient dosing controls are positioned at one end of the stacked towers for easy access for refill needs.  Any recipe can be adjusted on an individual basis to optimize for cloning or vegging or strain requirements.  All sensor and environmental tracking is backed up to the Amazon Web Services cloud (AWS).

Grow aeroponic Clone or or healthy Veg plants at your own speed for tall green plants or hemp and always keep your flower bloom rooms in production.







More Aeroponic Clone Information?

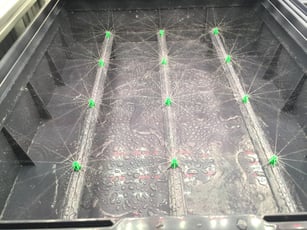

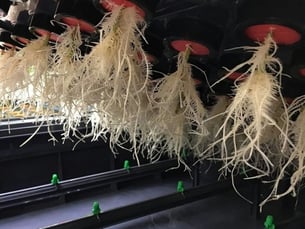

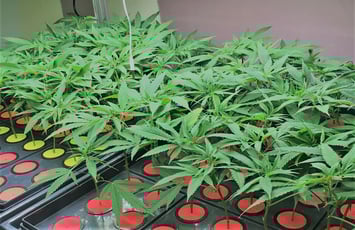

SmartFarm Aeroponic Emitter Spray Nozzles            AEtrium-2.1 SmartFarm Aeroponic Clone Roots           AEtrium-2.1 SmartFarm Aeroponic Clones


Aeroponic SmartFarm - 24, 48, & 72-Tray Versions

Outer Dimensions

  24 Tray 48 Tray 72 Tray
Width 5' 4" (1622 mm) 5' 4" (1622 mm) 5' 4" (1622 mm)
Length 9' 11" (3012 mm) 16' 6" (5017 mm) 23' 1" (7022 mm)
Height 8' 4" (2539 mm) 8' 4" (2539 mm) 8' 4" (2539 mm)
Area 53 sqft (4.9 ㎡) 88 sqft (8.2 ㎡) 123 sqft (11.4 ㎡)
Dry Weight 1720 lbs (780Kg) 2867 lbs (1300Kg) 4013 lbs (1820Kg)
ADU Weight 574 lbs. (260 Kg) Dry Weight



Growth Tray Dimensions

  24 Tray 48 Tray 72 Tray
Width 22" (559 mm)
Length 27" (686 mm)
Holes/Tray 63
Hole Spacing 3" hole center to hole center, 1" hole edge to edge



Automatic Nutrient Dosing Unit Controls

 SmartFarm Range Resolution
pH 0-14 0.01
TDS/EC 10 µS/cm - 30 mS/cm
Water Temp 32-122 °F (0-50°C) 1°F (0.1°C)
Reservoir 80 gallons (363.7 l)
Liquid Nutrient Dosing 7 available four-liter bottles
Irrigation Timing 1 minute ON, 3-15 minutes OFF
Water Level Automatic Water Leveling & Auto Flush
Water Flow Rate 15.8 gal/min. (60 lit/min.)



Electrical Specifications

SmartFarm 24 Tray 48 Tray 72 Tray
ADU (Dosing Pump) 100-240 VAC / 50-60 Hz, 1,700 W
ADU (Typ. Power) 1,400-1,800 W (24-48)
Drain (Return Pump) 120 VAC / 60 Hz or 230 VAC / 50 Hz, 750 W
Drain (Typ. Power) 500-700 W
SPDU (Sectional Power Unit) 100-305 VAC / 50-60 Hz, 1,250 W
SPDU/System 2 4 6
SPDU (Typ. Power) 2,520 W 5,040 W 7,560 W
Optional Water Chiller 120 VAC / 60 Hz or 230 VAC / 50 Hz
Chiller (Typ. Power) 600 W 1,200 W

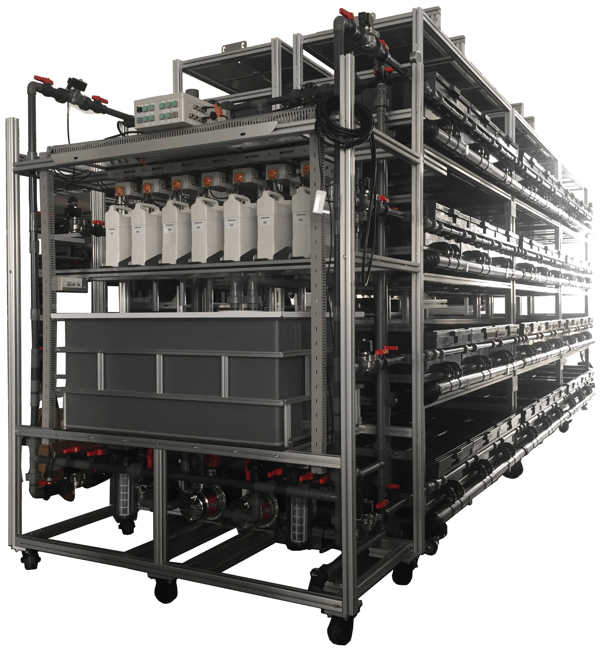

AEtrium-2.1 SmartFarm-72

AEtrium SmartFarm-72 Angle View





SmartFarm Automatic Dosing Unit

AEtrium-2.1 SmartFarm Automatic Dosing Unit
